Inside the ASCII Racing Wheel
Tweet Topic Started: Mar 14 2012, 08:39 PM (1,230 Views)
bluedogrulez	Mar 14 2012, 08:39 PM Post #1

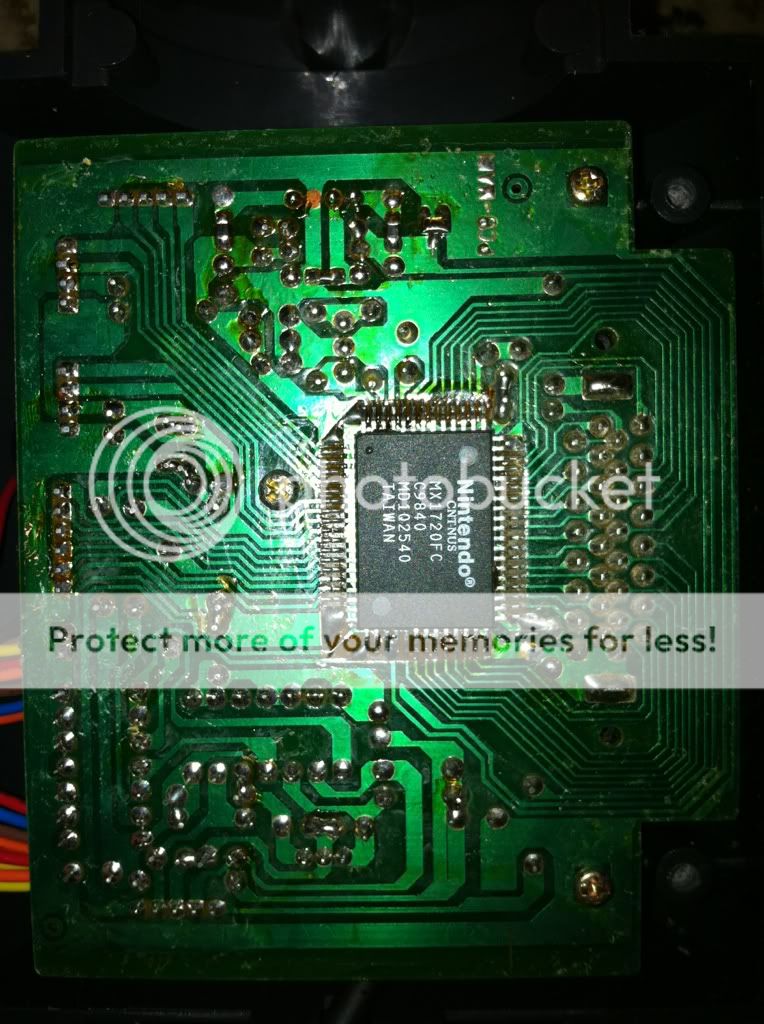

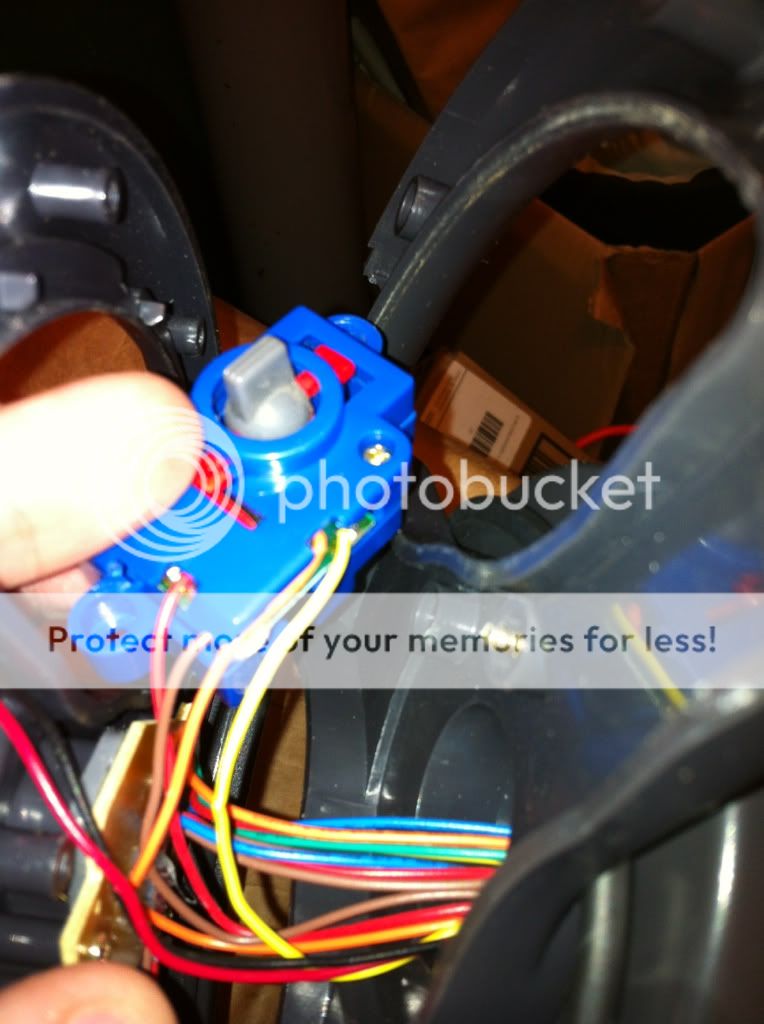

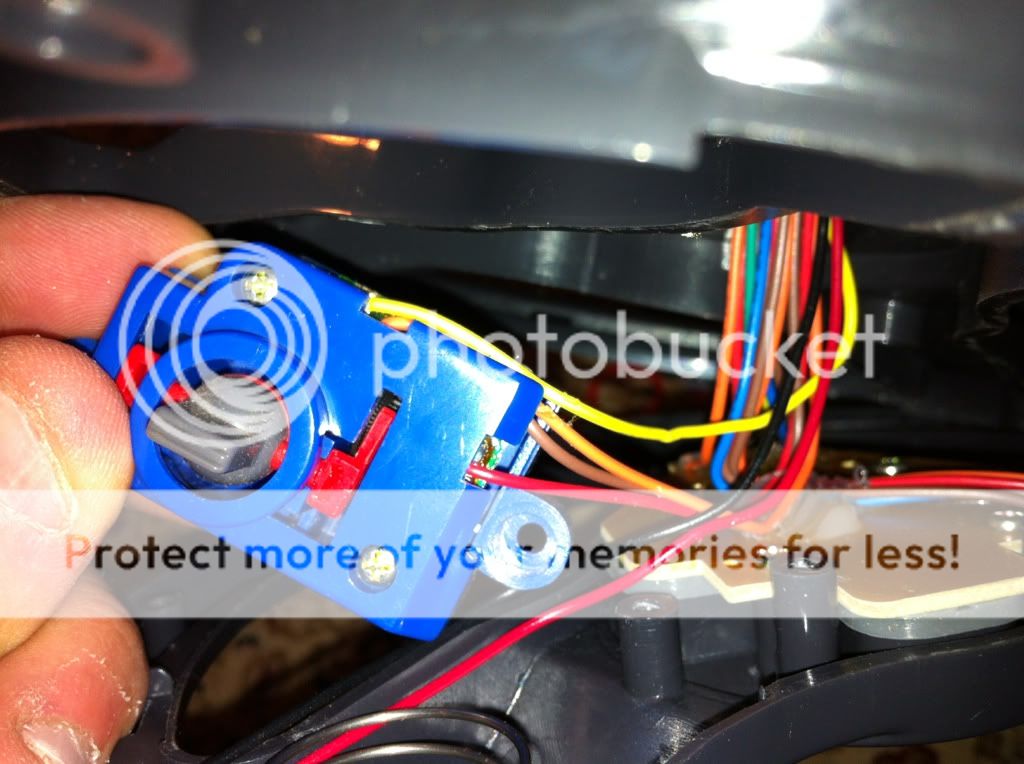

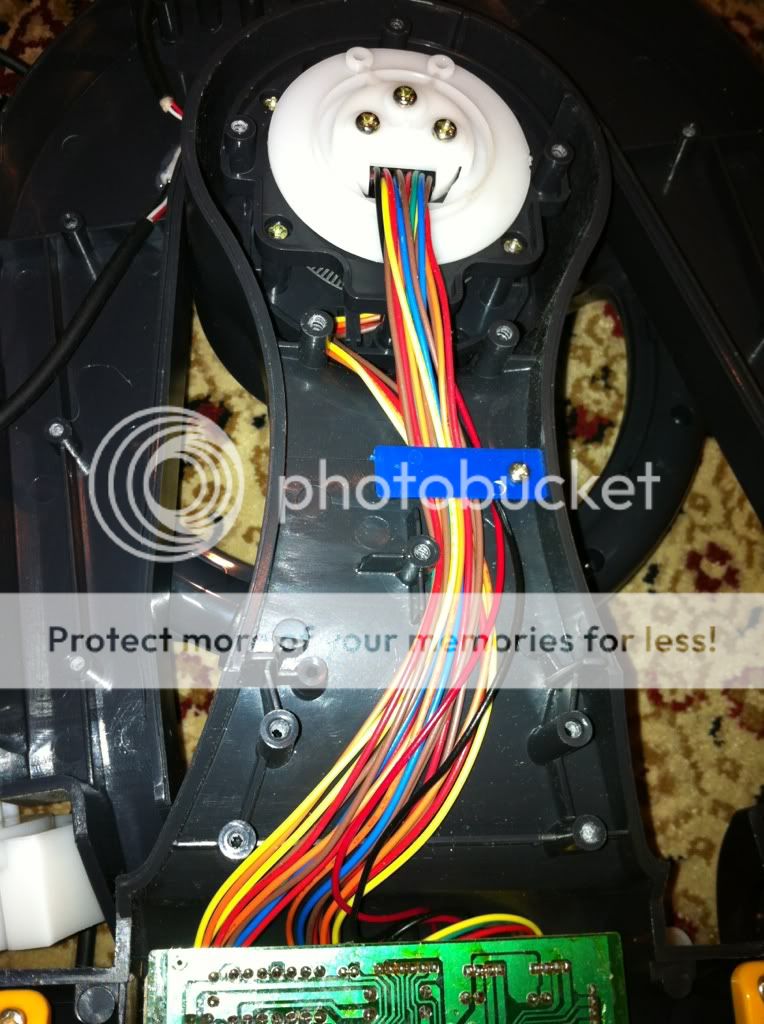

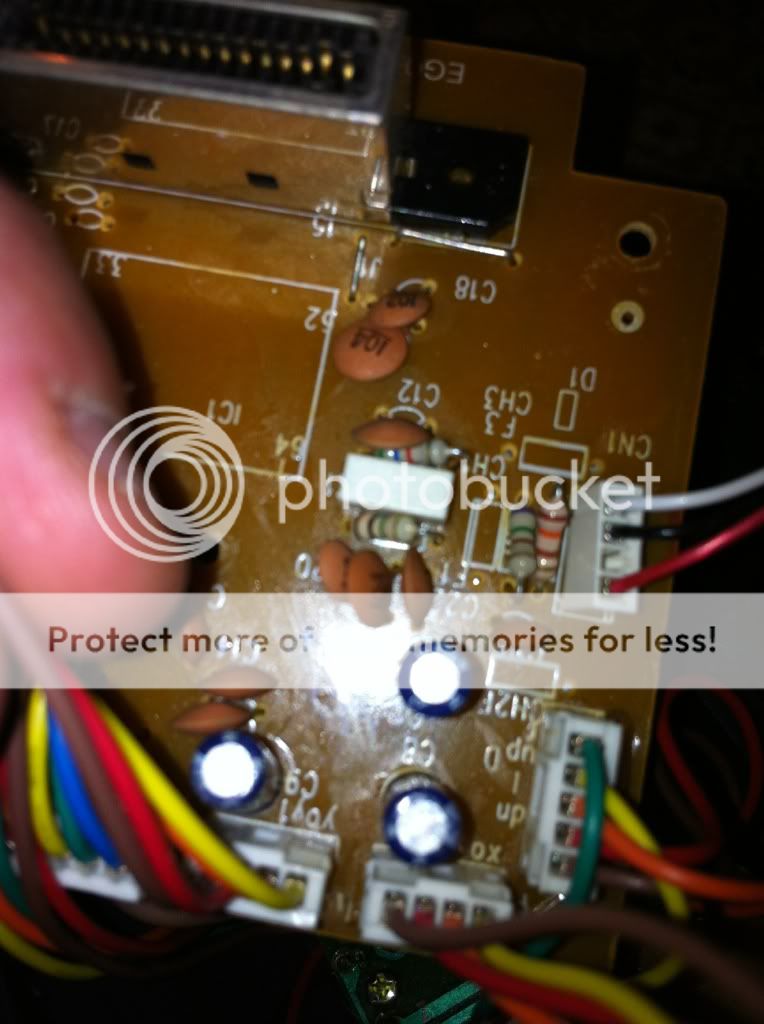

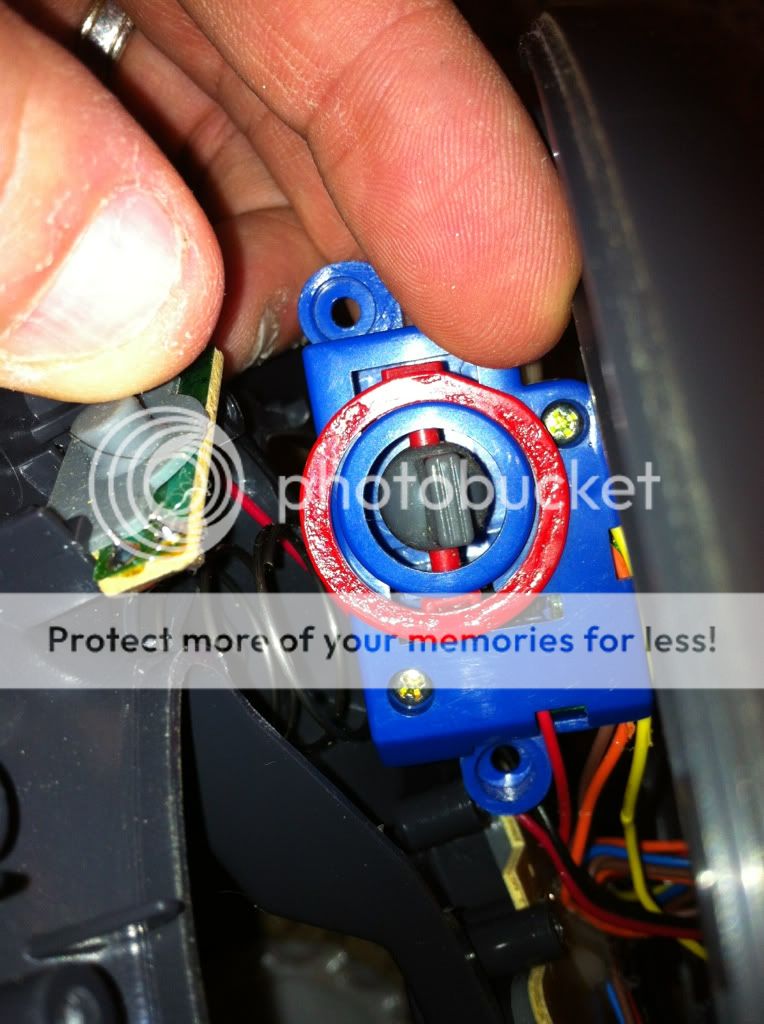

Racing for Fulcon Capital Posts: 9,322 Group: Admin Member #281 Joined: March 8, 2010	i cracked open my ascii racing wheel. Im curious about the up/down switch. Sort of looks like a mini OEM thumstick. Spring loaded, axis piece, etc. Four wires--orange, brown, yellow, red--run down the neck: To the Nintendo branded board: Plugged into the board in the same way an OEM Thumbstick connects: More board pics: [img]http://i984.photobucket.com/albums/ae327/bluedogrulez/0e4d5f16.jpg[/ing]
	Switch Friend Code: SW-0786-9287-1202 (bluedogBDR) MK8Deluxe Tourney: N64Forever.com 2332-7277-8283 Nintendo Network ID: BDR2010 / Twitter: @bluedogrulez


Thegt550	Mar 14 2012, 09:06 PM Post #2
N64/ Classic Car parts Hunter Posts: 435 Group: BANNED !! Member #507 Joined: May 10, 2011	so many wires
	STAFF WARNING ABOUT THIS MEMBER: http://s9.zetaboards.com/Nintendo_64_Forever/topic/7400206/1/ I Arthur J. Garcia Declare that i will Help People with their problems regarding the Golden N controller this does not apply to people who resold theirs and dint bought it from TheGt550 I will sale whats left of my collection to help.(jusco,np100,japan blue/white)


bluedogrulez	Mar 15 2012, 07:56 AM Post #3
Racing for Fulcon Capital Posts: 9,322 Group: Admin Member #281 Joined: March 8, 2010	Thegt550 Mar 14 2012, 09:06 PM so many wires Yeah, all of your A, B, C, shoulder and start buttons are on the wheel. The board is down at the base. Hence the wire party. I should note that an OEM thumbstick has 6 wires; i assume that the switch only has 4 because it does not transmit a L or R signal, but i could be mistaken.
	Switch Friend Code: SW-0786-9287-1202 (bluedogBDR) MK8Deluxe Tourney: N64Forever.com 2332-7277-8283 Nintendo Network ID: BDR2010 / Twitter: @bluedogrulez


clarky_n64	Mar 15 2012, 09:46 AM Post #4
Modding Monster Posts: 2,184 Group: Staff (Ret.) Member #366 Joined: September 27, 2010	Thanks for the pics Bluedogrulez. Does the switch in question toggle forward and backwards?
	Clarky & Smithy Creations YouTube Channel


bluedogrulez	Mar 15 2012, 10:54 AM Post #5
Racing for Fulcon Capital Posts: 9,322 Group: Admin Member #281 Joined: March 8, 2010	@ Clarky: Yes. Think of a thumbstick that only moves UP and Down, and returns to center when released. I hope that is clear.
	Switch Friend Code: SW-0786-9287-1202 (bluedogBDR) MK8Deluxe Tourney: N64Forever.com 2332-7277-8283 Nintendo Network ID: BDR2010 / Twitter: @bluedogrulez


clarky_n64	Mar 16 2012, 10:36 AM Post #6
Modding Monster Posts: 2,184 Group: Staff (Ret.) Member #366 Joined: September 27, 2010	I think I have a switch that works in the same fashion. I'm going to have a look tonight and see what I can come up with.
	Clarky & Smithy Creations YouTube Channel


bluedogrulez	Apr 13 2012, 08:36 AM Post #7
Racing for Fulcon Capital Posts: 9,322 Group: Admin Member #281 Joined: March 8, 2010	Bumping this to continue a private discussion. Sorry, bad form, but in furtherance of N64 research, so stay tuned.
	Switch Friend Code: SW-0786-9287-1202 (bluedogBDR) MK8Deluxe Tourney: N64Forever.com 2332-7277-8283 Nintendo Network ID: BDR2010 / Twitter: @bluedogrulez


bluedogrulez	Apr 13 2012, 07:02 PM Post #8

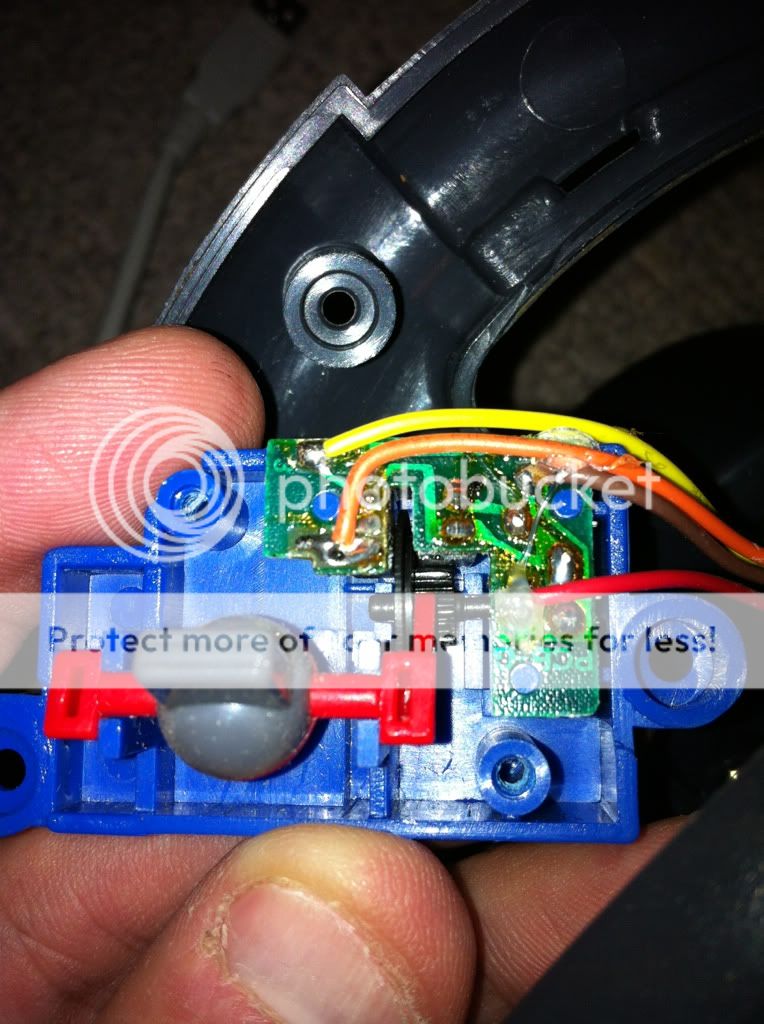

Racing for Fulcon Capital Posts: 9,322 Group: Admin Member #281 Joined: March 8, 2010	Four wires out the back; a peak inside:
	Switch Friend Code: SW-0786-9287-1202 (bluedogBDR) MK8Deluxe Tourney: N64Forever.com 2332-7277-8283 Nintendo Network ID: BDR2010 / Twitter: @bluedogrulez


bluedogrulez	Apr 19 2012, 08:08 PM Post #9

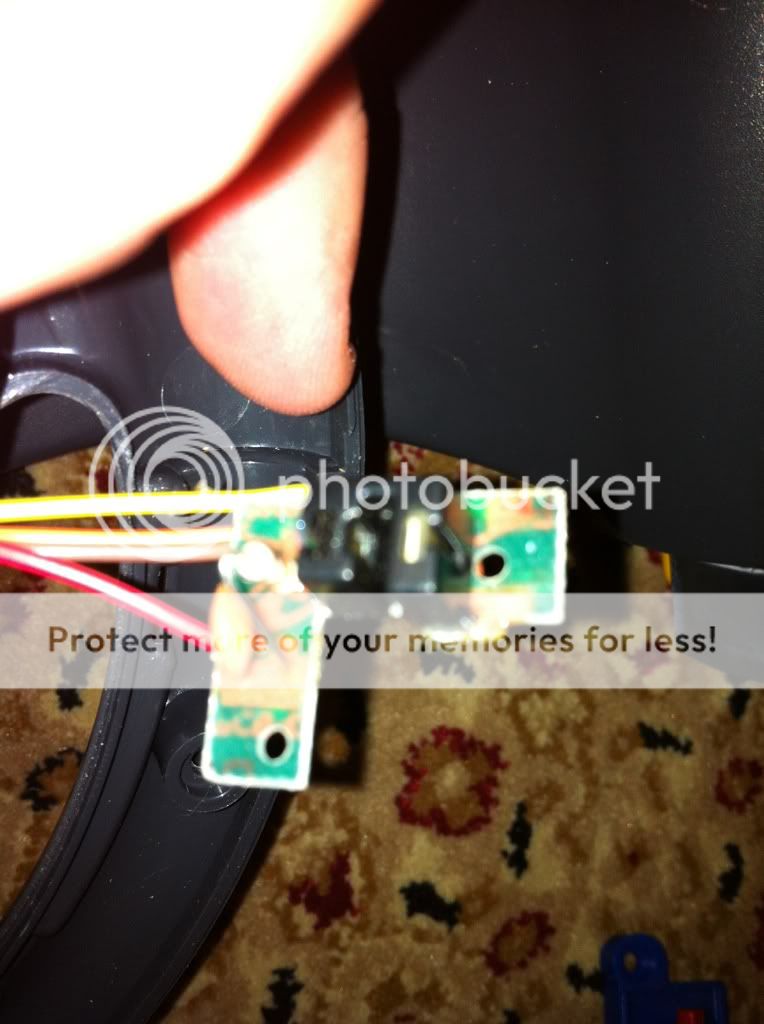

Racing for Fulcon Capital Posts: 9,322 Group: Admin Member #281 Joined: March 8, 2010	The inner wheel (just like the OEM thumbstick): And the LED/photo cell (just like the OEM, too):
	Switch Friend Code: SW-0786-9287-1202 (bluedogBDR) MK8Deluxe Tourney: N64Forever.com 2332-7277-8283 Nintendo Network ID: BDR2010 / Twitter: @bluedogrulez


clarky_n64	Apr 20 2012, 02:31 AM Post #10
Modding Monster Posts: 2,184 Group: Staff (Ret.) Member #366 Joined: September 27, 2010	Thanks this will help alot
	Clarky & Smithy Creations YouTube Channel


bluedogrulez	Apr 25 2012, 07:20 PM Post #11

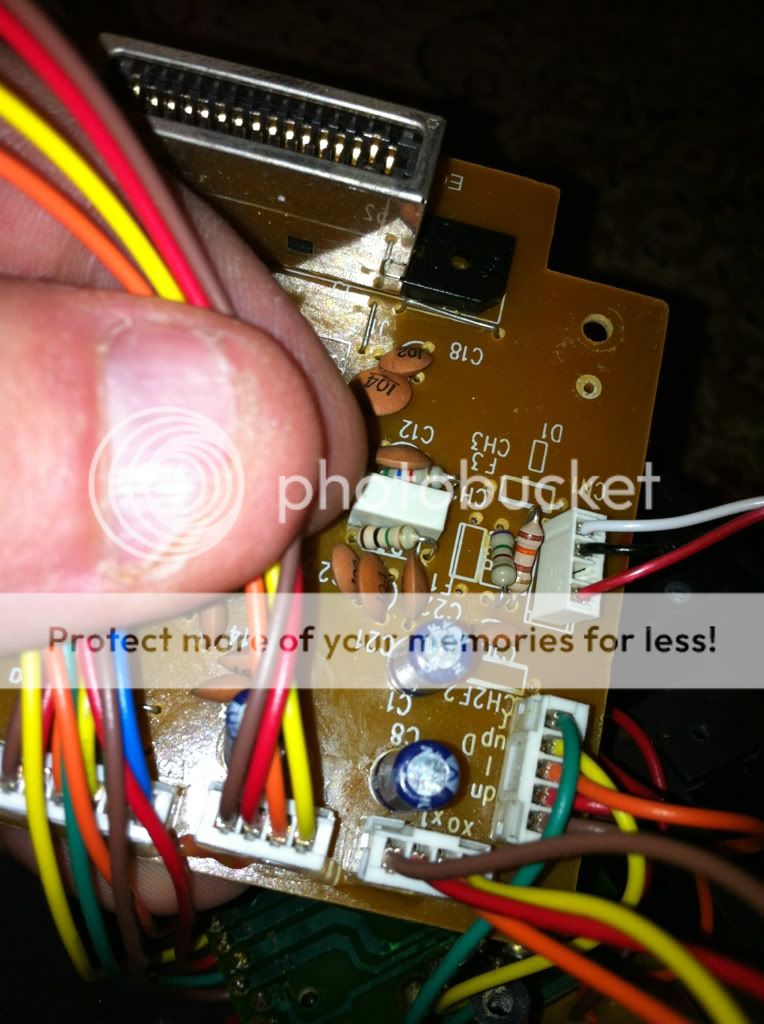

Racing for Fulcon Capital Posts: 9,322 Group: Admin Member #281 Joined: March 8, 2010	It appears that there are 4 wires (yellow, orange, red, brown; botton left of photo) that come from the Wheel (as opposed to buttons on wheel): The wires connect to the board by the 4-wire plug next to the 4-wire plug for the switch. Edited by bluedogrulez, Apr 25 2012, 07:22 PM.
	Switch Friend Code: SW-0786-9287-1202 (bluedogBDR) MK8Deluxe Tourney: N64Forever.com 2332-7277-8283 Nintendo Network ID: BDR2010 / Twitter: @bluedogrulez
