Latest Designs for house; using 3D design software...
Topic Started: May 20 2008, 07:47 AM (85 Views)
Richard Howard
No Avatar

Admin
20th May 2008

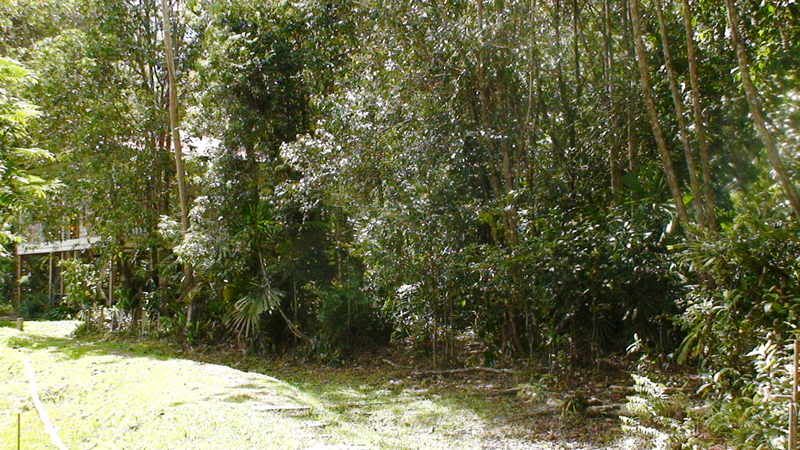

Here is our plot. I will take wider photos from further back on our July 08 visit.
Posted Image

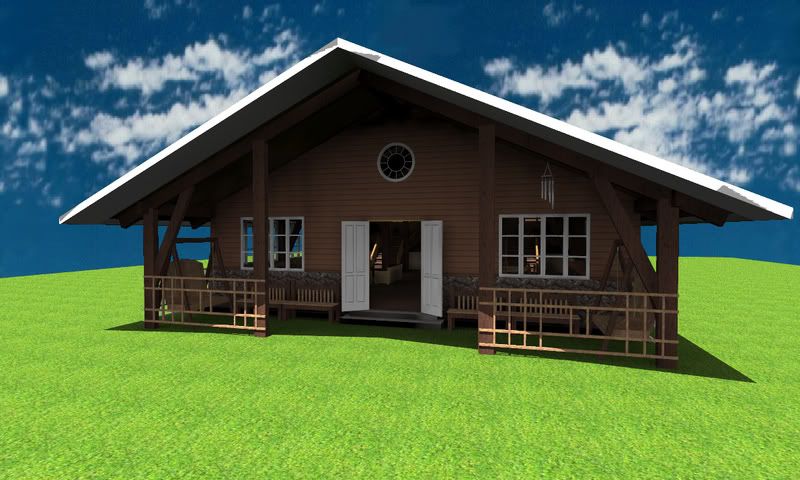

In this design the house is 1 long ground floor front to back. The back will be within the jungle so this will be pretty much the view you will have from outside. I will edit the jungle in and post 'in situ' at some point...
Posted Image

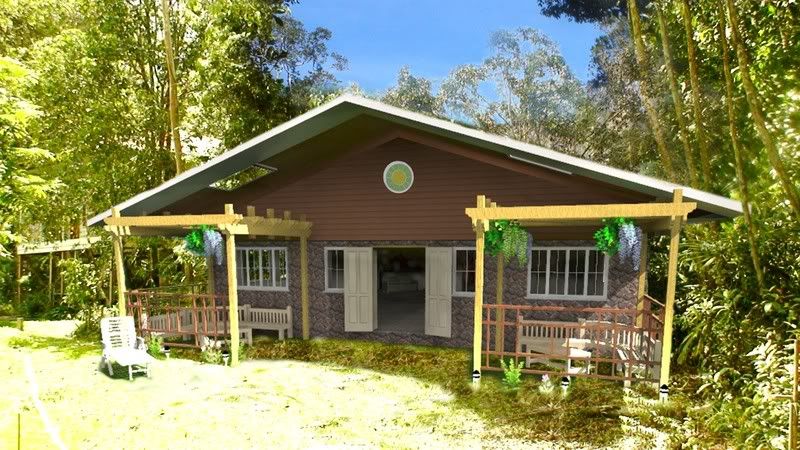

This is the same design with the jungle edited in...
Posted Image

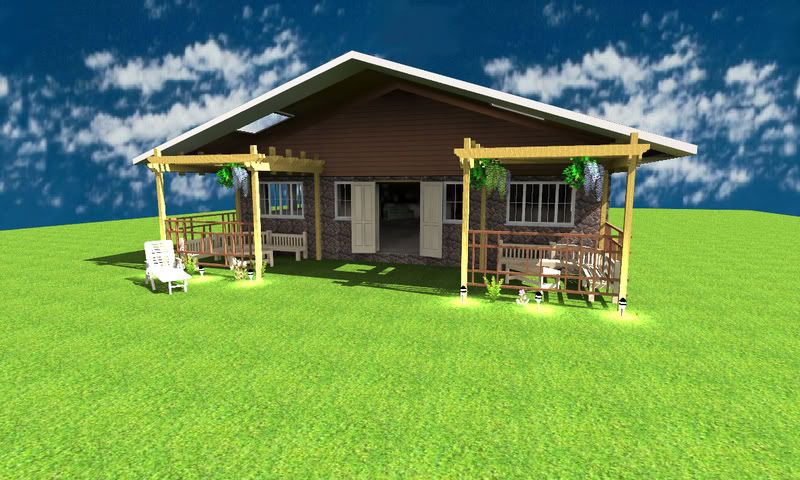

Now I have redesigned using the same layout and general plan of one long house. The earth-bag walls are lower so that they are cabinet and bottom of window height which is very practical for our design. There is some concern of an on-the-ground build with damp and insects mainly but a water trench, a good overhang on the roof, and a large gutter should sort this. The walls will also be built on a concrete foundation which will also raise them about 4" off the ground. The earth-bag wall is literally bags of earth used as bricks, rendered with clay or cob or anything. We may then clad with local stone chippings. Here's the updates frontage...
Posted Image

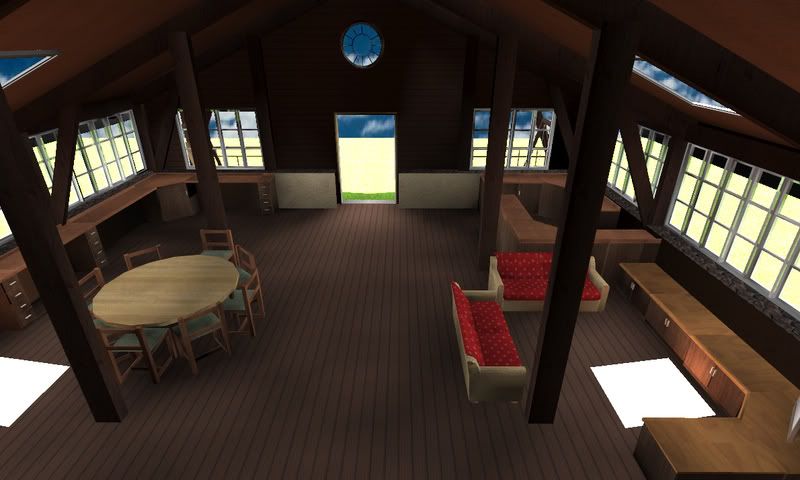

Here's a view of the interior looking down towards the front entrance...
Posted Image

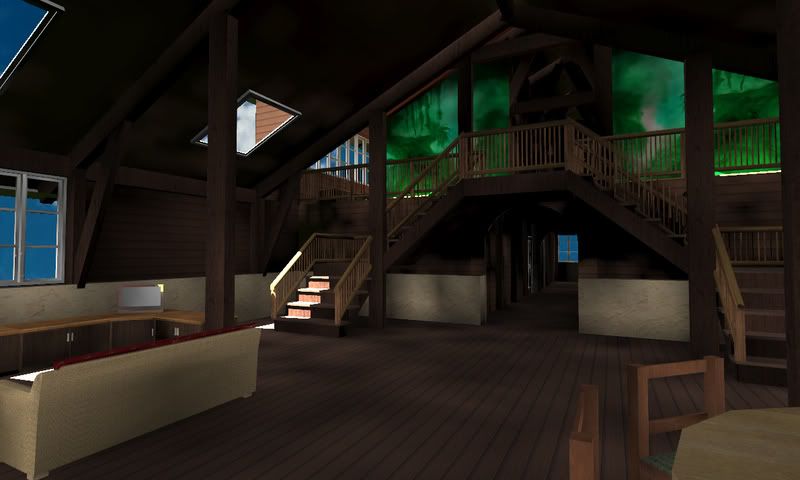

Here's an interior view from the front wall. The green jungle you can see is a mural idea we had. We will commission a local artist to paint this or alternately i will do it myself if there is any problem with the scale, medium etc.
Posted Image

WILL UPDATE THIS AS DESIGN PROGRESSES
Edited by Richard Howard, Jun 13 2008, 07:46 AM.
